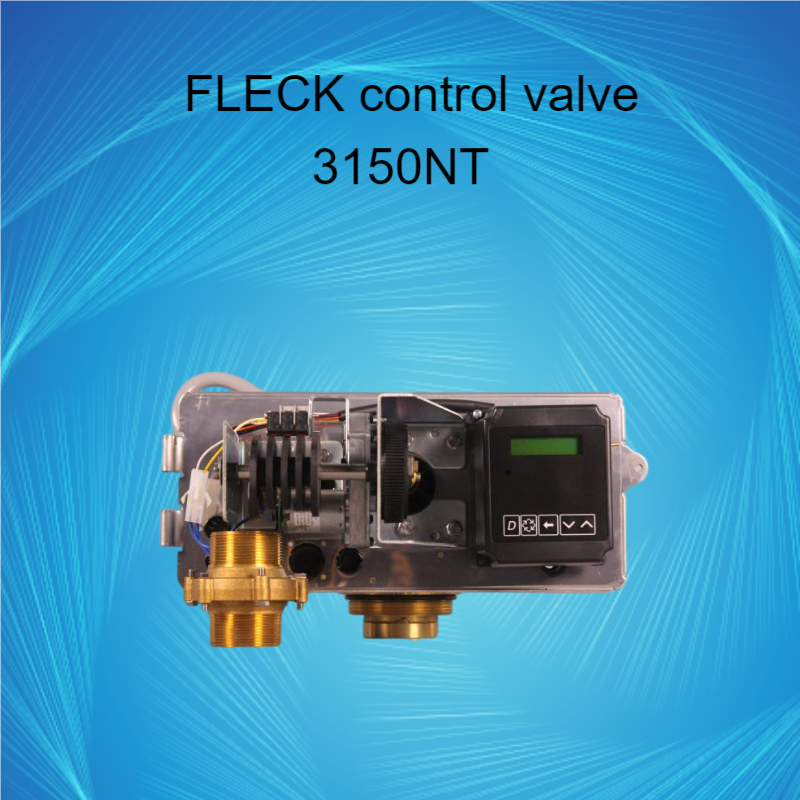

Fleck 3150 Control Valve

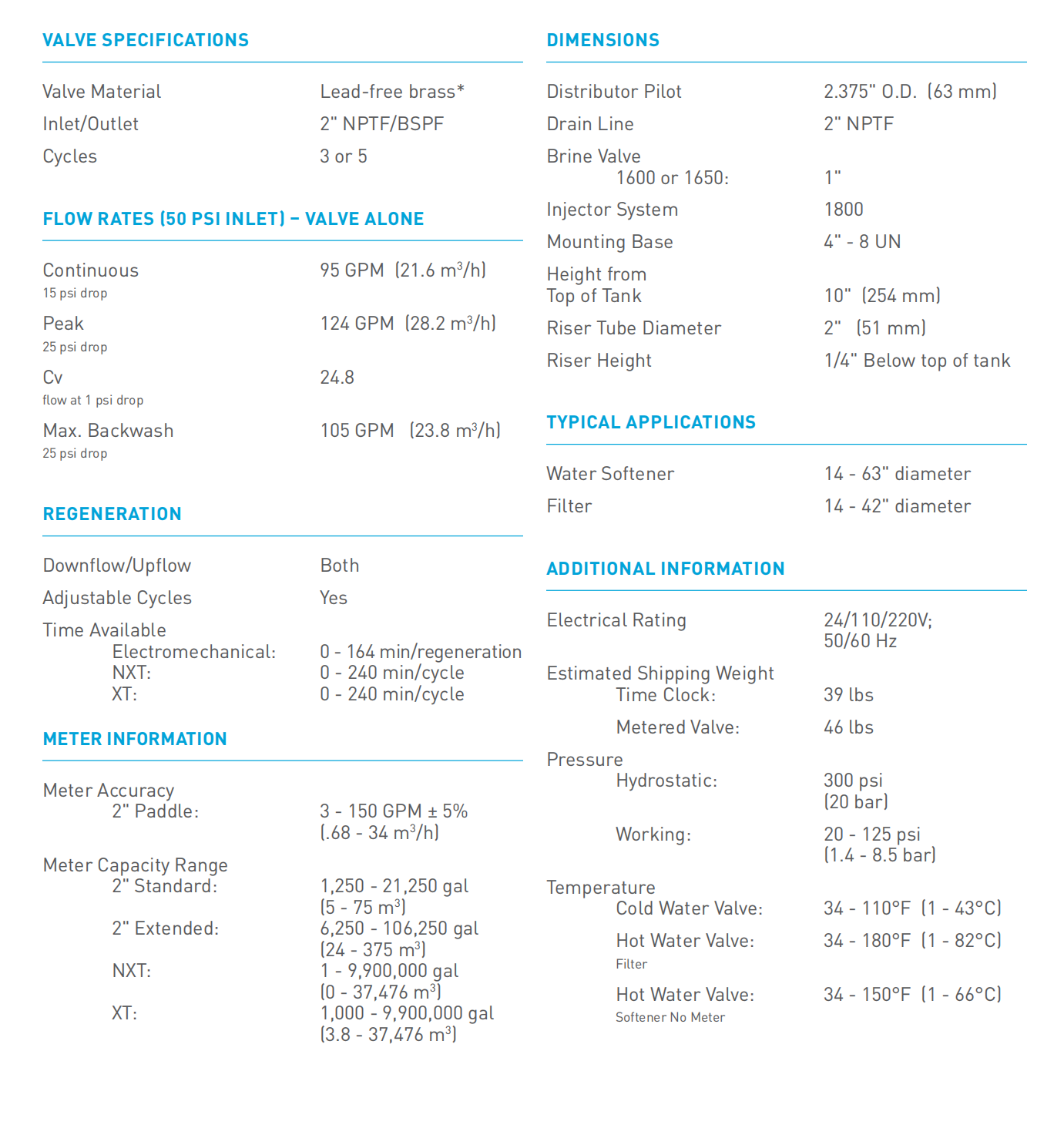

1.Introduction to the Fleck 3150 Control Valve:
The inlet and outlet pipe diameter is 2”
The regeneration steps are 5 steps
The flow range is (0.35Mpa inlet pressure).
The continuous water output is (pressure drop 0.175Mpa) 21.59m3/h.
The peak water output is (pressure drop 0.175Mpa) 28.18m3/h.
The resistance coefficient CV is 24.8.
The backwashing flow rate is (pressure drop 0.175Mpa) 105gpm.
Regeneration Process：
Countercurrent/Cocurrent: Either is optional.
Program adjustment: All regeneration steps are adjustable.
Maximum regeneration time: Mechanical motor control 82/164 minutes/each program.
Flowmeter
Flowmeter accuracy: 2” 0.34-17.04 m3/h.
Flowmeter measurement range: 2” Standard: 4.73-80.49 m3/h.
Increased: 11.83-201.23 m3/h.
ET: 0-37852.11 m3/h.
No hard water bypass: Yes (automatically closes the water outlet during regeneration).
2.Main Dimensions of the Fleck 3150 Control Valve:
Center pipe diameter: 2” (1.9”) O.D
Drain pipe diameter: 2” NPTF
Salt suction pipe diameter: 1”
Ion exchange tank interface diameter: 4”-8UN
Distance from the top of the control valve to the tank interface height: 10”
Softening and filtering devices
Softening: 50”-60”
Iron removal filter: N/A
Sand filter: 14”
Activated carbon filter: 14”
Multi-media filter: 14”
3.Other Reference Information for the Fleck 3150 Control Valve:
Power parameters: 24V 110V 240V-50HZ, 60HZ
Maximum power: 8.9W
Pressure parameters: Design pressure 2.1Mpa Working pressure: 0.14-0.84Mpa
Operating temperature: 34O-114OF (1-43OC)
The Fleck control valve has been certified as safe drinking water equipment material.

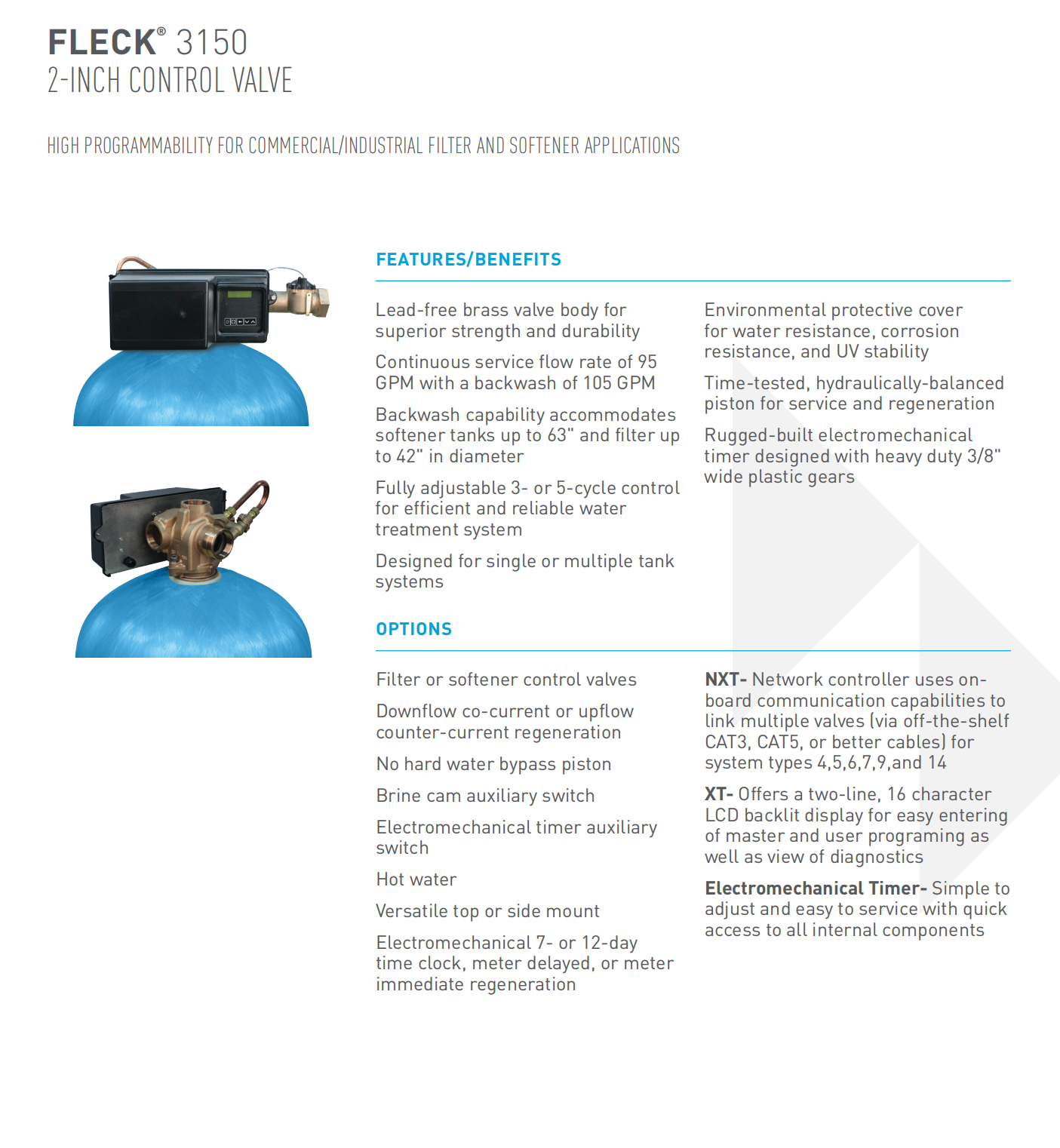

4.Product Features of the Fleck 3150 Control Valve:
● Five-step regeneration process, including backwashing, salt suction, and slow/fast rinsing, and salt tank refilling, with adjustable time settings for each step.
● Universal top/side mounting options suitable for commercial or industrial systems.
● Capable of being configured for 60" diameter softened water systems.
● Valve body made of lead-free brass, strong and able to withstand high pressure.
● NEMA 3R certified protective enclosure for waterproof, rainproof, corrosion resistance, and UV resistance.
● Optional adjustable 7 or 12-day time-triggered or flow-triggered regeneration.
