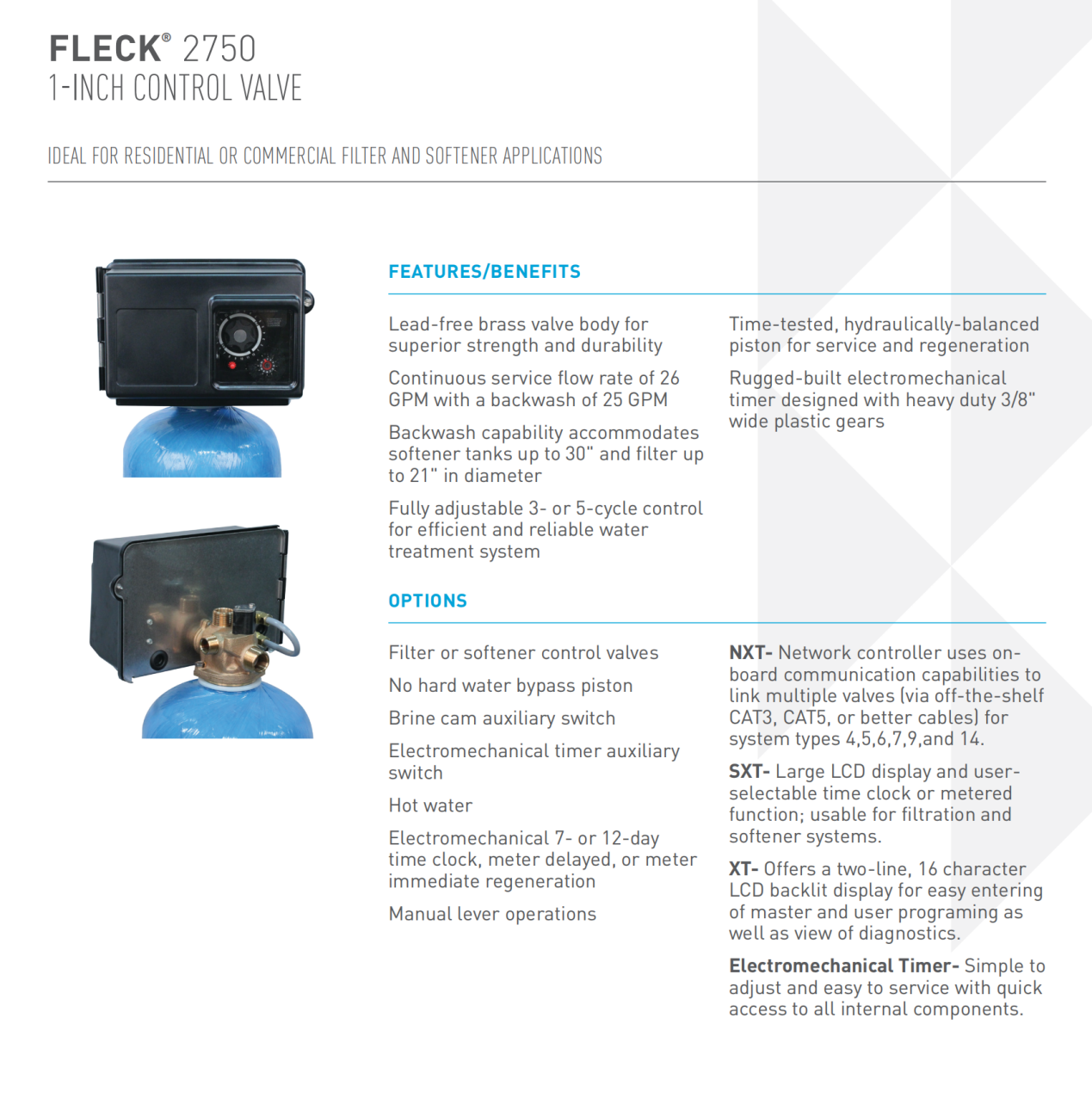

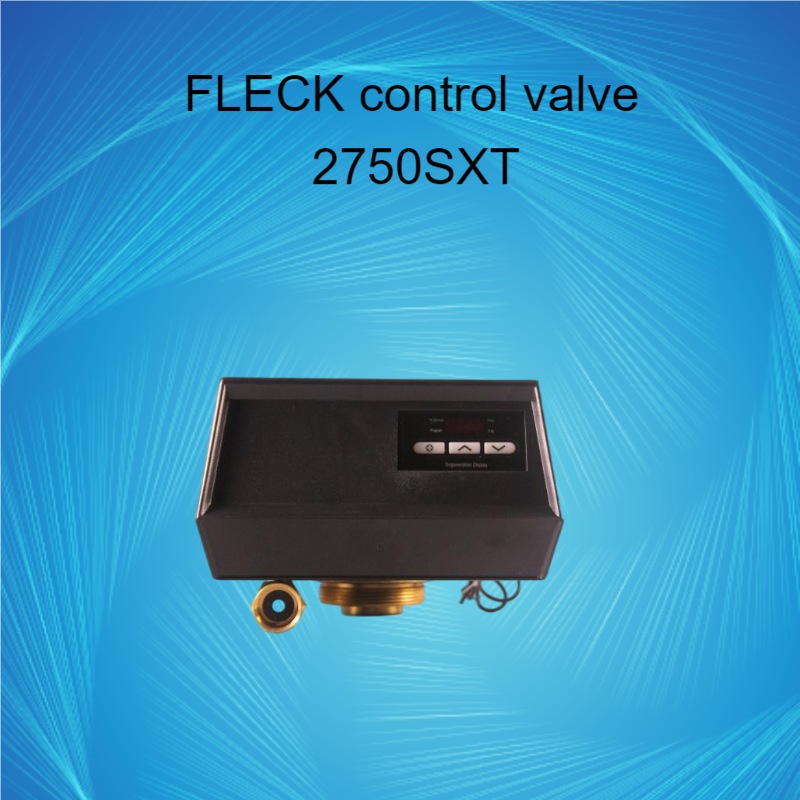

FLECK 2750 Control Valve
The FLECK2750 control valve series is a single-piston industrial control valve that is suitable for use in single-tank systems, such as softeners and filters. It can be paired with a softening tank with a maximum diameter of 600mm, and the continuous water output (pressure drop of 0.1Mpa) is 5.9m3/h. The external pipe diameter is generally 1".
Detailed Description:
The 2750 series is a single-piston industrial control valve suitable for use in single-tank systems, including softeners and filters. It can be paired with a softening tank with a maximum diameter of 600mm, and the continuous water output (pressure drop of 0.1Mpa) is 5.9m3/h. The external pipe diameter is generally 1".

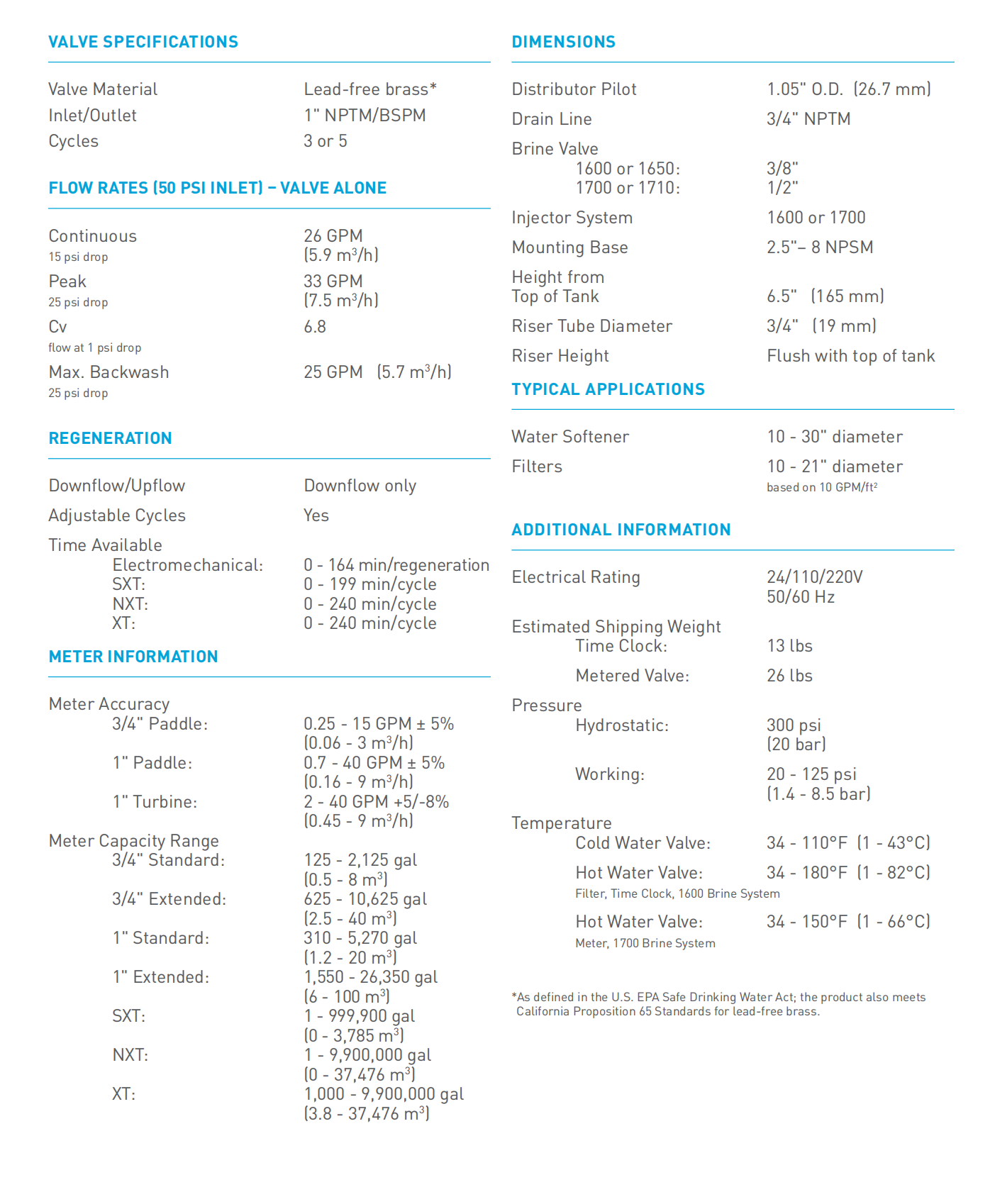

1.FLECK 2750 Control Valve Technical Features:
Valve Body Material: Lead-free Brass
Inlet/Outlet Pipe Diameter: 1" (Male)
Flow Range (0.35Mpa Inlet Pressure)
Continuous Water Output (Pressure Drop 0.1Mpa): 5.9m3/h
Peak Water Output (Pressure Drop 0.175Mpa): 7.5m3/h
Resistance Coefficient Cv: 6.8
Backwash Flow (Pressure Drop 0.175Mpa): 25gpm
Regeneration:
Co-current/Counter-current: Optional
Programmable: All regeneration steps are adjustable in time
Maximum Regeneration Time: 164 minutes
Flowmeter Accuracy 1": 0.156-9.09m3/h±5%
3/4": 0.056-3.4 m3/h±5%
Flowmeter Range 1": Standard 1.17-19.96m3, Enlarged 5.87-99.81m3
3/4": Standard 0.47-8m3, Enlarged 2.3-40m3
No Hard Water Bypass: Yes
Main Dimensions:
Center Pipe Diameter: 1" (1.05) O.D.
Drain Pipe Diameter: 3/4" (male)
Salt Solution Pipe Diameter: 3/8" or 1/2"
Tank Connection Diameter: 2 1/2"-8
Valve Body Height (from top of valve body to tank connection): 6-1/2"
2.The FLECK 2750 control valve is a single-piston industrial control valve suitable for use in single-tank systems, filters, boiler water softeners, and other industrial water softening applications.
Performance Features:
a. Horizontally arranged piston
b. Valve body made of lead-free brass
c. Compatible with a hard water bypass piston, which automatically blocks hard water during regeneration, eliminating the need for additional valves
d. High backwash flow rate
e. Valve can be configured for manual operation
f. Can be paired with a dual-tank system (one in use, one standby), requiring additional valves to achieve this configuration.
3.FLECK 2750 Control Valve Product Features:
● Suitable for large residential/light industrial systems
● Five-step regeneration process, including backwash, brine suction, and slow rinse, fast rinse, brine tank refill, all adjustable in time
● Can be paired with a 24" diameter softening system
● Can be triggered for regeneration every 7 or 12 days, or based on flow rate, or configured for manual operation
● Valve body made of lead-free brass
● Compatible with a hard water bypass piston
● Hydrodynamically balanced piston, seals, and partitions regulate water flow and regeneration through time-tested design
4.FLECK 2750 Control Valve Options:
● Can be used as a backwash filter valve
● Suitable for hot water systems with a maximum temperature of 180°F (82℃) for time-based models and 150°F (65℃) for flow-based models
● Flow-triggered regeneration
● Can be configured for manual control of regeneration
● Operating valve controller
● Compatible with a hard water bypass piston (co-current)
● Counter-current model available with
